Round or oval holes up to 8 mm thick metal

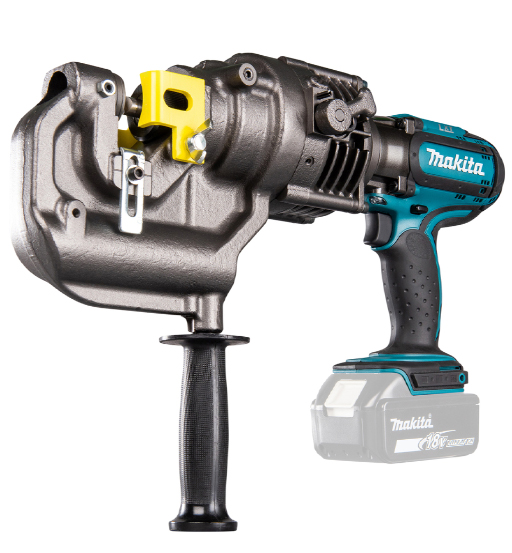

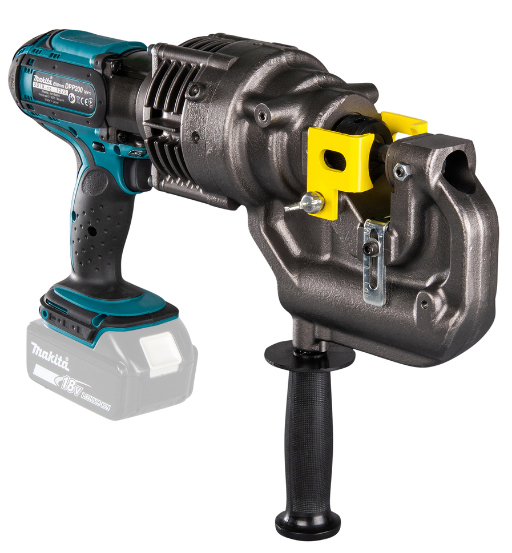

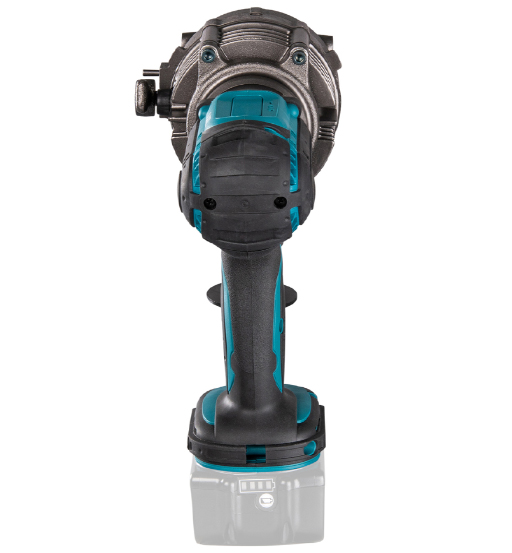

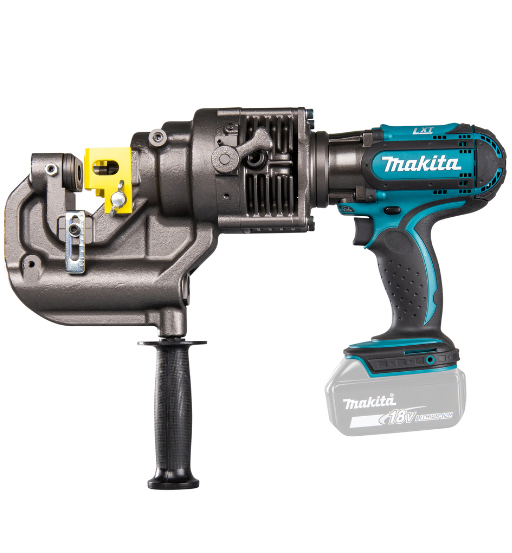

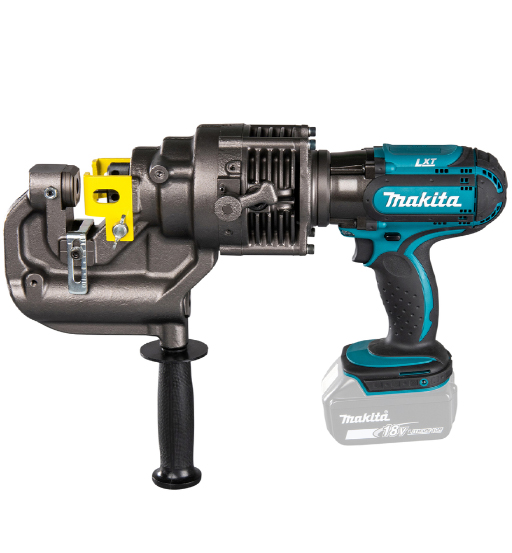

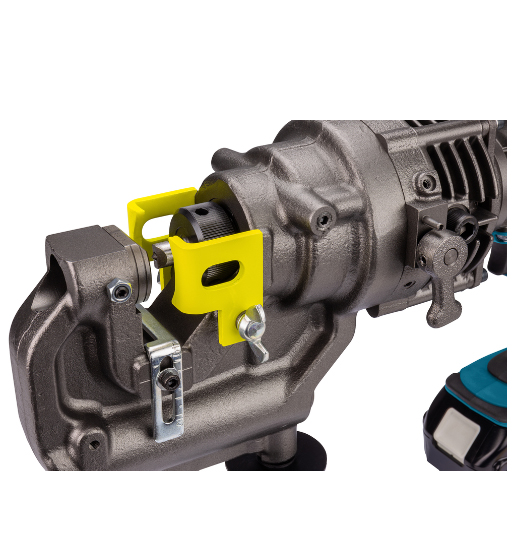

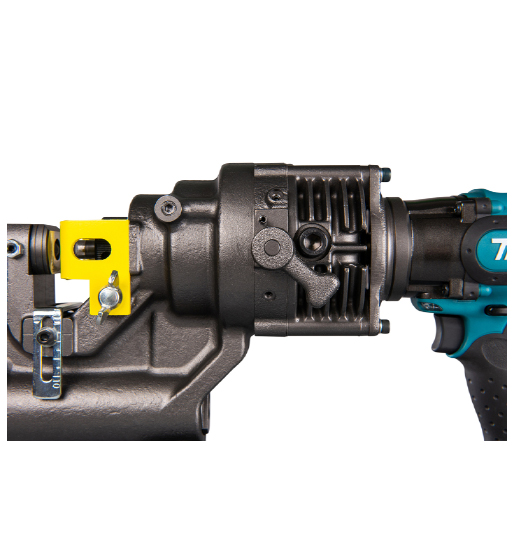

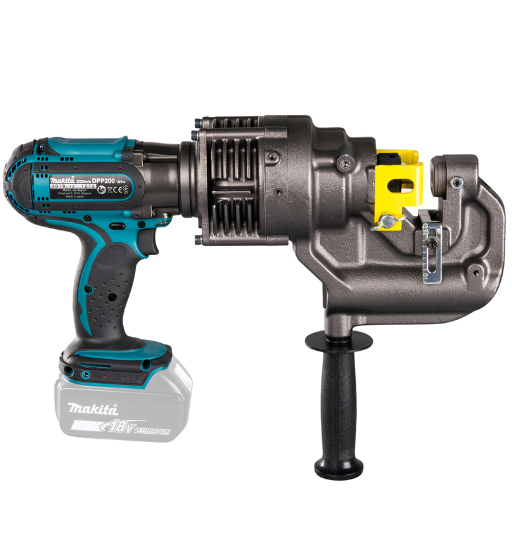

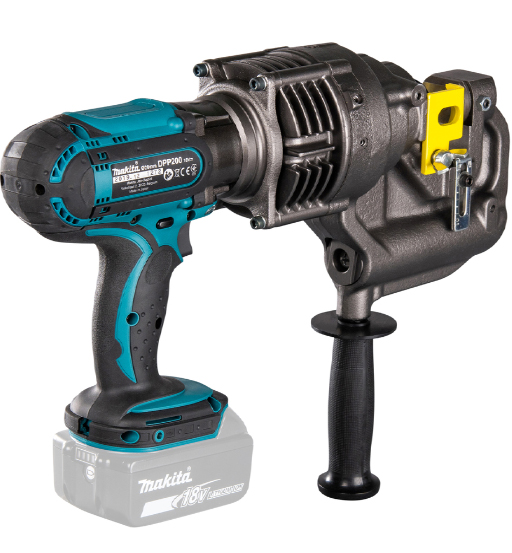

A punch with which you can quickly and safely make holes up to 20 mm in diameter in metal up to 8 mm thick. Depending on the punch to be selected, either round or oval holes.
Technical specification
- Nominal Battery Voltage:18 V
- Voltage LXT:√
- Brushless Motor:√

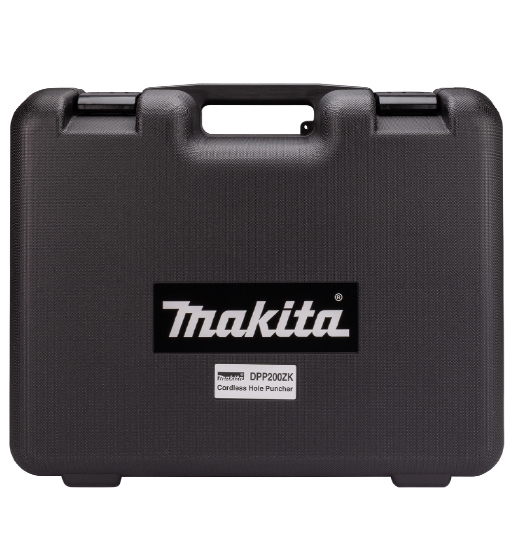

- Plastic Carrying Case:√
- Sound Pressure Level (LpA):77 dB(A)
- Noise Uncertainty (K Factor):3 dB(A)
- Vibration Level (3 axes):≤ 2,5 m/s²
- Vibration Uncertainty (K Factor):1,5 m/s²
- Tool weight with battery (EPTA):10,5 kg
- Product Dimensions (L x W x H)::417 x 127 x 315 mm
- Bore (B):6-20 mm
- Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):Li-ion
User benefits

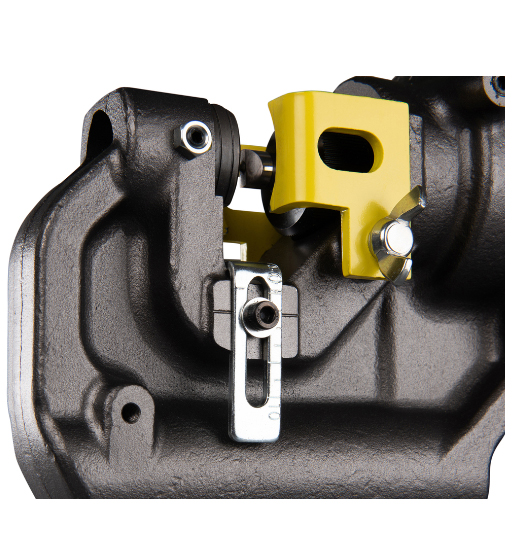

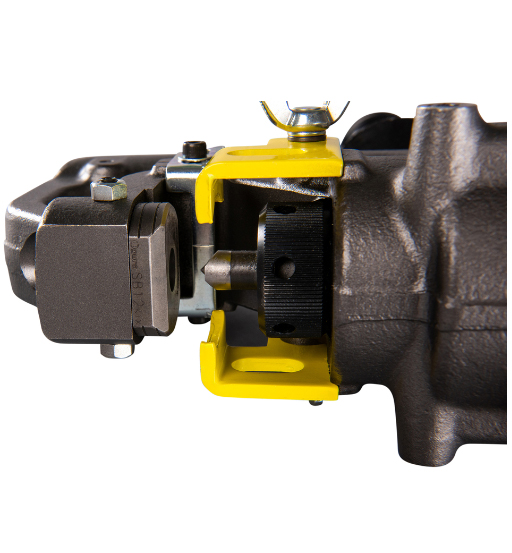

- Automatic punch return: After a punching cycle is completed, hydraulic pressure automatically pulls off the punch from work piece and returns it to the initial position to enable efficient continuous hole punching
- Type of hole: Round hole / long hole
- Battery protection system automatically shuts off power when the battery level is low.
Li-ion • 18V • 6,0 Ah x 2 • DC18RDNi-Cd battery for 7,2V tools
Technical specification-Battery
- Average Charging Time:55 min
- Nominal Battery Voltage:18 V
- Voltage LXT:√
- Battery Chemistry (Ni-Cd / Ni-MH / Li-ion):Li-ion
- Battery Capacity:6,0 Ah
- Battery protection circuit protects against overloading, over-discharging and over-heating
